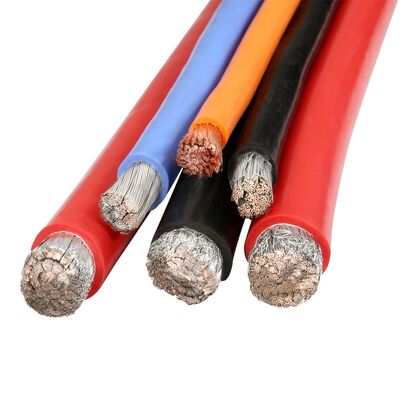

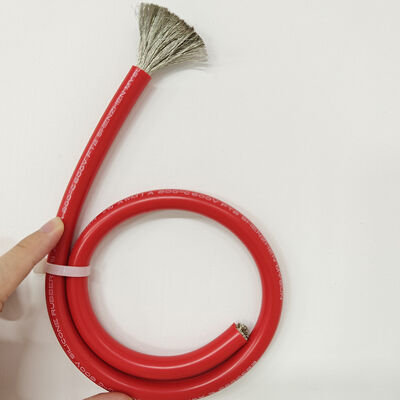

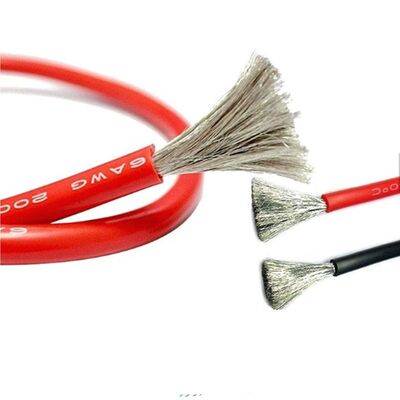

High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor

  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
Место происхождения Гуандун, Китай
Фирменное наименование MYSUN
Номер модели UL30045
Количество мин заказа 2000 г.
Подробная информация о продукте
Материал проводника Медь Диаметр 2 AWG, 4 AWG, 1 AWG, 6 AWG, 10 AWG, 8 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 2
Изоляционный материал Силикон Номинальное напряжение 600 В, 1500 В, 1000 В
Тип проводника застрявший Температура 200С, 150С
Тип изолированный номинальная температура 200c
Дирижер Луженая проволока Изоляция Силиконовая резина
Максимальное сопротивление 199,0 Ом/км (0,15 мм²), 40,1 Ом/км (0,50 мм²), 24,8 Ом/км (0,75 мм²), 18,7 Ом/км (1,00 мм²), 12,5 Ом Длина блока 610/2000 М (0,15 мм²), 305/1000 М (0,50 мм², 0,75 мм², 1,00 мм², 1,50 мм², 2,00 мм², 2,50 мм², 4,0 м
Номинальная толщина 0,60 мм (от 0,15 до 2,50 мм²), 1,00 мм (от 4,0 до 16,0 мм²), 1,90 мм (от 10,0 до 16,0 мм²), 2,20 мм Строительство 7/0,18 (0,15 мм²), 20/0,8 (0,50 мм²), 30/0,18 (0,75 мм²), 40/0,18 (1,00 мм²), 30/0,254 (1,50 мм²), 4
Выделить

200C Rated Temperature Silicone Wire

,

600V Rated Voltage Battery Cable

,

Tinned Copper Conductor High Temperature Cable
Оставьте сообщение
Характер продукции
High Temperature Ultra Flexible Soft Silicone Wire
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 0 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 0
Technical Specifications - UL30045
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)/(Ft)
0.157/0.180.540.601.74199.0610/2000
0.5020/0.80.920.602.1240.1305/1000
0.7530/0.181.130.602.3324.8305/1000
1.0040/0.181.310.602.5118.7305/1000
1.5030/0.2541.600.602.8012.5305/1000
2.0040/0.2541.870.603.078.96305/1000
2.5050/0.2542.081.004.087.47305/1000
4.0128/0.202.91.004.904.70
6.0192/0.203.31.005.303.15
10.0379/0.204.61.908.401.80
16.084/0.44.51.908.3014
16.0510/0.206.01.909.801.15
12128/0.45.51.909.305.53
25.0797/0.207.52.2011.900.80
0.50mm²200/0.47.02.2011.4040.1
35.01115/0.208.82.2013.200.60
1.00mm²279/0.48.02.2012.4020
50.01593/0.2010.32.4015.100.40
2.00mm²399/0.410.32.4015.108.78
70.02230/0.2012.02.4016.800.30
357/0.512.02.4016.80
95.03026/0.2014.02.4018.800.20
485/0.514.02.4018.80
120.02368/0.25416.02.4020.800.17
612/0.516.02.4020.80
150.0765/0.517.52.4022.300.14
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 2 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 2 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 4 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 4
Our Products
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 6
Company Profile
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 7 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 7 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 9 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 9
Our Overseas Clients
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 11
Exhibition
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 12
Certifications
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 13
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
