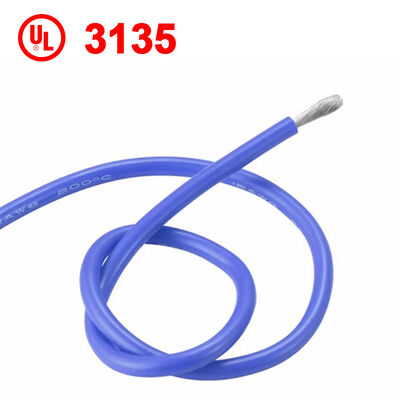

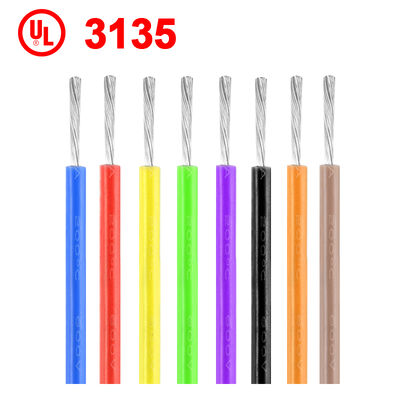

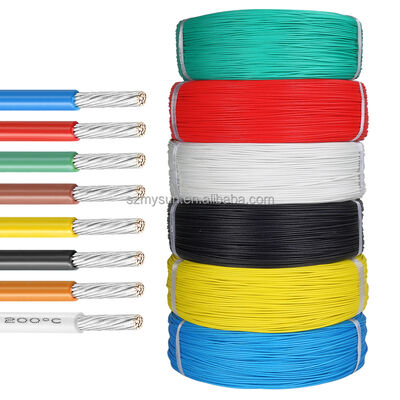

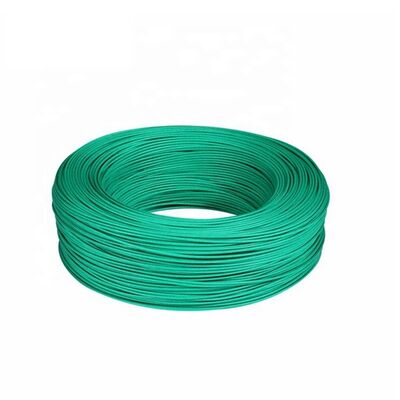

UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances

  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
  • UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
Место происхождения Гуандун, Китай
Фирменное наименование MYSUN
Сертификация UL RoHS CE CCC cUL
Номер модели UL3135
Количество мин заказа 305
Подробная информация о продукте
Материал проводника Луженая медная проволока Диаметр 12 AWG, 20 AWG, 22 AWG, 14 AWG, 24 AWG, 8 AWG, 16 AWG, 18 AWG, 6 AWG, 2 AWG, 4 AWG, 26 AWG
Изоляционный материал Силикон Номинальное напряжение 300-600 В
Тип проводника застрявший Форма Круглый
Температура 200 Тип изолированный
Дирижер Консервированное медное ядро Номинальное напряжение 300V/600V
Материал Медь Куртка Силикон
Цвет Необязательный Максимальное сопротивление 143 Ом/км (26 AWG), 89,3 Ом/км (24 AWG), 56,4 Ом/км (22 AWG), 35,2 Ом/км (20 AWG), 22,2 Ом/км (18 AW
Длина блока 305/1000
Выделить

UL758 Standard Silicone Wire

,

200°C Temperature Resistant Silicone Cable

,

Tinned Copper Conductor High Temperature Wire
Оставьте сообщение
Характер продукции
UL 16-26 AWG Silicone Cable - High Temperature Resistant Wire for Home Appliances
Seeking Country Agents for Win-Win Partnership
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 0 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 1

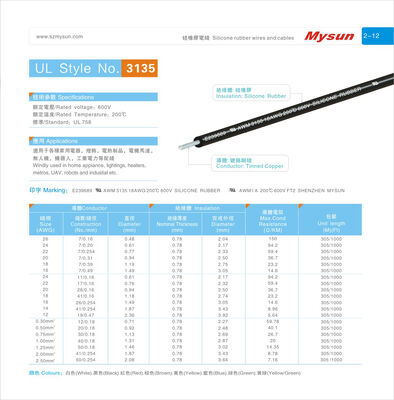

Technical Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
267/0.160.480.782.04143305/1000
247/0.200.610.782.1789.3305/1000
227/0.2540.770.782.3356.4305/1000
207/0.310.940.782.535.2305/1000
187/0.391.190.782.7522.2305/1000
167/0.491.490.783.0514305/1000
2411/0.160.610.782.1789.3305/1000
2217/0.160.760.782.3256.4305/1000
2026/0.160.940.782.535.2305/1000
1841/0.161.180.782.7422.2305/1000
1626/0.2541.490.783.0514305/1000
1441/0.2541.870.783.438.78305/1000
1219/0.472.630.783.925.53305/1000
0.30mm²12/0.180.710.782.2759.78305/1000
0.50mm²20/0.180.920.782.4840.1305/1000
0.75mm²30/0.181.130.782.6926.7305/1000
1.00mm²40/0.181.310.782.8720305/1000
1.25mm²50/0.181.460.783.0214.35305/1000
2.00mm²41/0.2541.870.783.438.78305/1000
2.50mm²50/0.2542.080.783.647.16305/1000
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 2 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 3
Our Products
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 4 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 5
Application
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 6 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 7

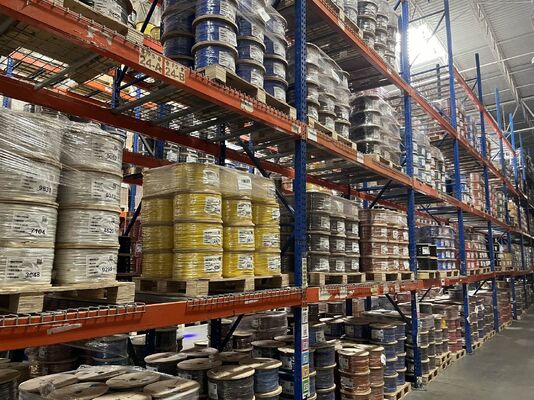

Company Profile
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 8 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 9 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 10 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 11
Our Overseas Clients
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 12 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 13
Exhibition
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 14 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 15
Certifications
UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 16 UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances 17
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
