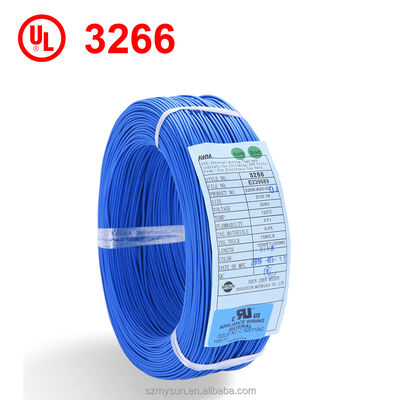

UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage

  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
Место происхождения Гуандун, Китай
Фирменное наименование MYSUN
Сертификация UL/ROHS/CCC/VDE/CCC/ISO9001:2008
Номер модели UL3266
Количество мин заказа 6100
Цена €0.1755-0.2633
Подробная информация о продукте
Материал проводника Луженая медь Варианты диаметра 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 0,50 мм2, 0,75 мм2, 1 мм2, 1,5 мм2
Изоляционный материал СПЭ Номинальное напряжение 300 В
Тип проводника Твердый Форма Круглый
Максимальная температура 125C Диапазон размеров 32~10АВГ
Доступные цвета Красный, синий, белый, желтый, зеленый, коричневый, черный, серый Строительство проводника 30/0,18
Номинальная толщина 0,39 мм Максимальное сопротивление проводника 3,55 Ом/км (10AWG)
Длина блока 305 м/1000 футов Толщина изоляции 0,39 мм
Общий диаметр 4,05 мм (10AWG)
Выделить

Tinned Copper XLPE Wire

,

125C Rated Temperature Hook Up Wire

,

300V Rated Voltage UL3266 Wire
Оставьте сообщение
Характер продукции

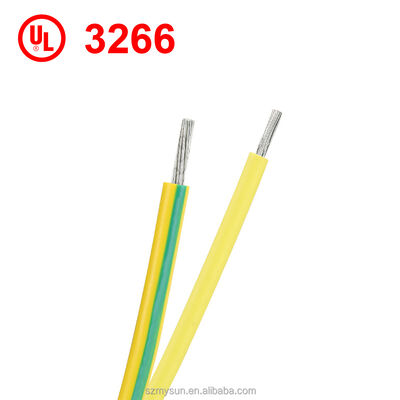

UL3266 Yellow Green 0.75mm² 30/0.18 300V 125°C Tinned Copper XLPE Wire
Premium UL3266 certified wire designed for Battery Energy Storage Systems (BESS) and electrical applications requiring high temperature resistance and reliable performance.
Product Overview
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 0 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 1
Technical Specifications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 2
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
327/0.080.240.391.02563610/2000
307/0.100.300.391.08381610/2000
287/0.1270.380.391.16239610/2000
267/0.160.480.391.26150610/2000
2411/0.160.600.391.3894.2610/2000
2217/0.160.760.391.5459.4305/1000
2021/0.180.940.391.7236.7305/1000
1816/0.2541.180.391.9623.2305/1000
1626/0.2541.500.392.2814.6305/1000
1441/0.2541.890.392.778.96305/1000
1265/0.2542.370.393.155.64305/1000
10105/0.2543.020.394.053.55305/1000
Customized size according to your needs
Contact Us for Best Quotation

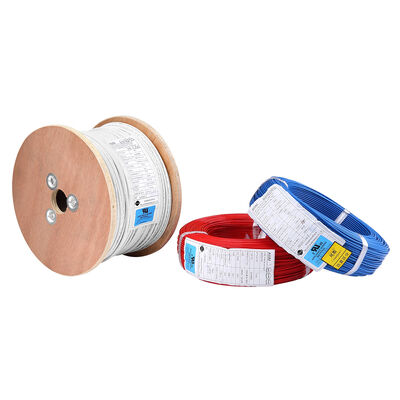

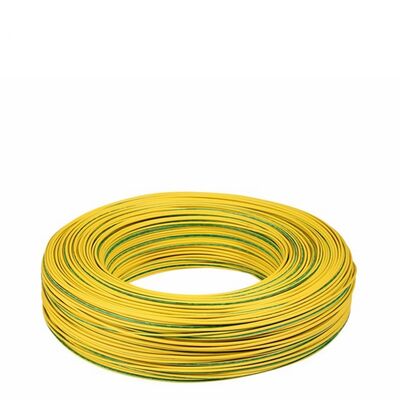

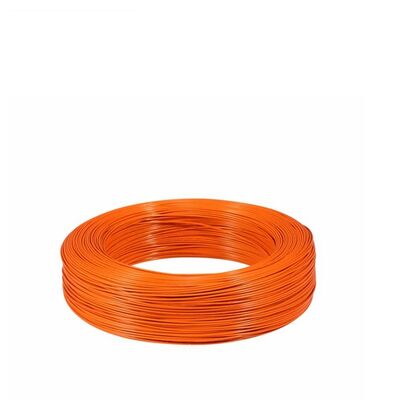

Our Product Range
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 3 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 4
Applications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 5 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 6

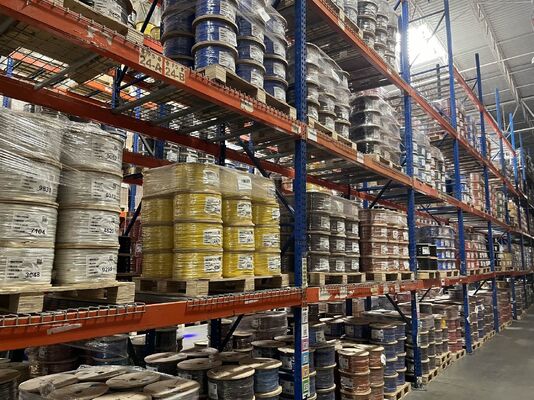

Company Profile
