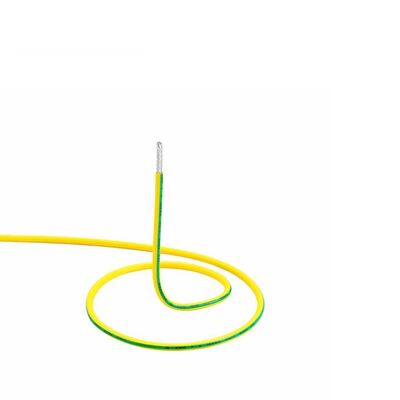

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment

  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
Место происхождения Гуандун, Китай
Фирменное наименование MYSUN
Номер модели CQC1111.31-2020/ГБ/T38296-2019
Количество мин заказа 3050

Свяжитесь я бесплатно образцы и талоны.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Материал проводника Жестяная медь Диаметр от 0,051 мм2 до 16,00 мм2
Изоляционный материал ФПП Номинальное напряжение 300 В.
Тип проводника Твердый Форма Круглый
Температурная оценка 150 ° C. Тип Изолированный
Длина блока 305/1000 м/фут Максимальное сопротивление проводника от 381 Ом/км до 1,17 Ом/км
Номинальная толщина от 0,230 мм до 0,510 мм Диаметр изоляции от 0,80 мм до 6,65 мм
Строительство от 7/0,10 до 133/0,393 Напряжение 300 В.
Цвет Все цвета
Выделить

High Temperature FEP Wire

,

Tinned Nickel Plated Copper FEP Wire

,

CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire
Оставьте сообщение
Характер продукции
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 0 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 1
Specification
CQC E-150/TX/FEP Wire UL1330 Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 100/328
2.50 19/0.41 2.08 0.380 2.90 7.47 100/328
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Click Contact us Get the Best Quote
Company Profile
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 2 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 3 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 4 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 5
Our Products
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 6 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 7
Application
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 8 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 9
Our Overseas Clients
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 10 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 11
Exhibition
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 12 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 13
Certifications
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 14 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 15
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
